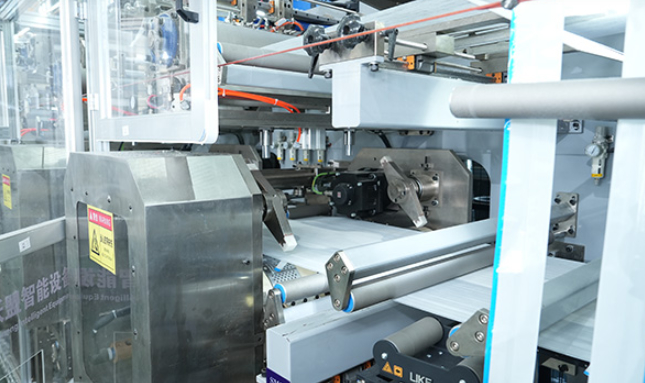

Adult Diaper Manufacturing Machine WM-A1109 SAP ADL HDTV Monitor
Key Specifications
| Attribute |
Value |
| Reject Rate |
≤ 2% |
| Total Power |
400 KW |
| Air |
0.6-0.8 M Pa |
| Power Supply |
380V, 50Hz |
| Raw Material |
Non-woven Fabric, SAP, Fluff Pulp |
| Packaging System |
Automatic Packaging |
Product Overview
Our advanced adult diaper production line ensures high-quality manufacturing through precision engineering and automated processes. The system guarantees material quality through professional transportation and pretreatment, while innovative molding technology creates superior absorbent cores with tight material bonding.
The automated cutting and packaging processes deliver exceptional precision, supported by comprehensive quality testing and control systems for smooth, efficient production of consumer-trusted products.
Technical Specifications
Product size: 35m*6m*4.5m (Customized according to customer requirements)
Product structure: Upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven, ADL (Acquisition distribution layer) non-woven, leak guard hydrophobic non-woven back sheet, waist band non-woven, color pattern sticker, elastic waist band, discarding sticker.
Control system: PLC control system, HMI operating on the LED touch screen, configured with HDTV monitor
Drive system: Servo Drive (Easy to change size), timing belt and flat belt are import products, and all the key parts are import bearings.
Tension system: Top tissue paper, bottom tissue paper, hydrophobic nonwoven (leg cuff), top nonwoven, ADL, back sheet, elastic nonwoven adopt A&B shaft active unwinding by inverter motor.
Safety system: Safety devices on operating side with emergency stop switch. High audio fan uses sound insulation or silencer.
Packaging system: Customizable according to customer requirements with palletizer machine (double push double exit) adjustable
Materials corrective system: International brand deviation correction system
Power: 380V, 50HZ three phase five wire
Machine Capacity: 400KW (Excluding glue machine and air compressor)
Bleed pressure: 0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight: 95 Tons approximately
