Name: Womeng New Model Full Servo Baby Diaper Making Machine 800pcs/Min PLC Control
Brand: Quanzhou Womeng Intelligent Equipment Co., Ltd.
SKU: WM-B1121
Price: 475,000.00 USD
Availability: InStock

Product Details

Place of Origin: Quanzhou City,China

Brand Name: Womeng

Certification: CE,ISO

Model Number: WM-B1121

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $400000-$550000/piece

Packaging Details: Seaworthy Wooden Box

Delivery Time: 120~150days

Payment Terms: T/T, L/C

Supply Ability: 30sets/year

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    baby diaper making machine 800pcs/min, full servo baby diaper making machine, new baby diaper manufacturing machine


Conditon:	New	Rejection Rate:	≤3%
Sizes:	S/M/L/XL	Stable Speed:	800pcs/min
Core Component:	PLC, Engine, Motor	After-Sales Service:	Engineers Available To Service Machinery Overseas
Power Supply:	380V, 50Hz	Processing:	Pulp&ultra Thin

Conditon:	New
Rejection Rate:	≤3%
Sizes:	S/M/L/XL
Stable Speed:	800pcs/min
Core Component:	PLC, Engine, Motor
After-Sales Service:	Engineers Available To Service Machinery Overseas
Power Supply:	380V, 50Hz
Processing:	Pulp&ultra Thin

Womeng New Model Full Servo Baby Diaper Making Machine 800pcs/Min PLC Control

Product Specifications

Attribute	Value
Condition	New
Rejection Rate	≤3%
Sizes	S/M/L/XL
Stable Speed	800pcs/min
Core Component	PLC, Engine, Motor
After-Sales Service	Engineers available to service machinery overseas
Power Supply	380V, 50Hz
Processing	Pulp & ultra thin

Product Overview

The Womeng Full Servo Baby Diaper Making Machine combines precision engineering with intelligent PLC control to deliver exceptional diaper production quality. This advanced system integrates automated processes with quality control measures to create premium baby diapers with consistent performance.

Technical Specifications

Product size: 25m*6m*3m (for reference only)

Product structure: Upper & lower tissue, cotton core (mixed with SAP), cover sheet hydrophilic non-woven, ADL (Acquisition distribution layer) non-woven, leak guard hydrophobic non-woven back sheet, waist band non-woven, color pattern sticker, elastic waist band, discarding sticker.

Control system: PLC control system with HMI operating on LED touch screen, configured with HDTV monitor

Drive system: Servo Drive (easy size change capability), imported timing belts and flat belts, all key parts use imported bearings

Tension system: A&B shaft active unwinding by inverter motor for all material types

Safety system: Operating side safety devices with emergency stop switch, high audio fan with sound insulation/silencer

Power: 380V, 50HZ three phase five wire

Machine Capacity: 400KW (excluding glue machine and air compressor)

Bleed pressure: 0.6-0.8Mpa (air compressor to be provided by customer)

Machine weight: Approximately 70 Tons

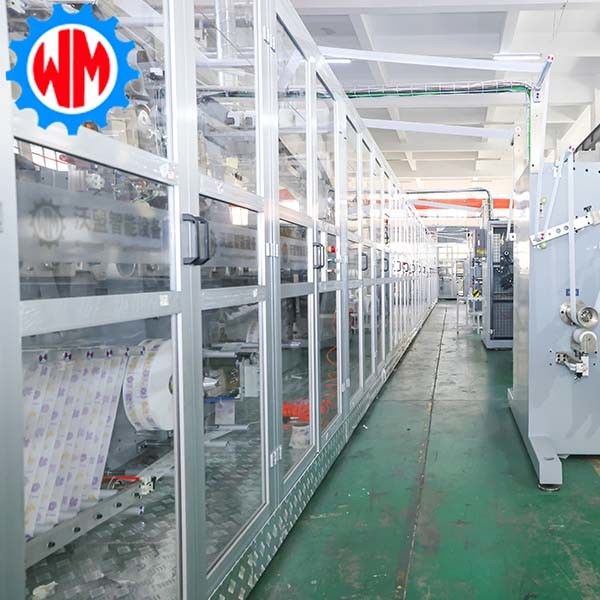

Machine Images

Key Advantages

High Efficiency: Operates at speeds up to 800 pieces per minute to meet high production demands

Customization: OEM & ODM services available for size, shape, and material specifications

Competitive Pricing: Advanced features at accessible price points for global manufacturers

Quality Assurance: CE certified with over 97% qualified rate for consistent output quality

Global Support: Comprehensive installation guidance, technical assistance, and after-sales service worldwide

Frequently Asked Questions

Why choose our machine?

1. Professional factory with high quality and competitive pricing
2. 24-hour online support (pre-sales and after-sales)
3. 12-month quality warranty
4. Overseas engineer support available

How to operate and maintain the machine?

1. Professional technical support available upon request
2. Our technicians will train your staff until they can operate the machine proficiently (expenses covered by buyer)

Do you have QC or any safety standards for machine?

Yes, we maintain a strict quality control department to ensure consistent machine quality and performance.

How to find matching accessories or wearing parts?

You can purchase from us at competitive prices or source locally - most of our accessories use standard components.

How much is this machine?

Pricing depends on:
1. Parent roll width requirements
2. Embossing or printing unit needs
3. Daily production capacity
4. Optional color glue application for enhanced visual appeal

About Womeng Intelligent Equipment

Quanzhou Womeng Intelligent Equipment Co., Ltd., founded in 2016, specializes in R&D, manufacturing, and sales of paper equipment including sanitary napkin, diaper, and pant production machinery. Located in Quanzhou - the cultural capital of East Asia and Maritime Silk Road starting point - we combine professional technical teams with customized equipment solutions to meet diverse market requirements.

Committed to honesty, cooperation, and win-win business philosophy, Womeng Equipment provides high-quality products and services while continuously pursuing innovation and excellence. We welcome collaboration with partners worldwide to create mutual success.
