Full Servo Adult Diaper Production Line New ModelMachine with ISO9001

Name: Full Servo Adult Diaper Production Line New ModelMachine with ISO9001
Brand: Quanzhou Womeng Intelligent Equipment Co., Ltd.
SKU: WM-A1101
Price: 4,550,000.00 USD
Availability: InStock

Product Details

Place of Origin: Quanzhou City, Fujian Province, China

Brand Name: WOMENG

Certification: CE,ISO9001

Model Number: WM-A1101

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: $600000~$8500000/piece

Packaging Details: Seaworthy Wooden Box

Delivery Time: 120-150days

Payment Terms: L/C, T/T

Supply Ability: 400pcs/minute

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                adult diaper production line new, full servo adult diaper production line, new adult diaper machine


After-Sales Service Provided:	Video Technical Support	Machine Color:	According To Customized
Product Qualification Rate:	Be Equal Or Greater Than 98%	Type:	Adult Diaper Machine
Fabric:	Non Woven	Packaging System:	Auto Stacker (Optional)
Efficiency:	90%	Machine Size:	35m6m4.5m(for Reference Only)

After-Sales Service Provided:	Video Technical Support
Machine Color:	According To Customized
Product Qualification Rate:	Be Equal Or Greater Than 98%
Type:	Adult Diaper Machine
Fabric:	Non Woven
Packaging System:	Auto Stacker (Optional)
Efficiency:	90%
Machine Size:	35m6m4.5m(for Reference Only)

Full Servo Adult Diaper Production Line New ModelMachine with ISO9001

Full Servo Adult Diaper Production Line New Model Machine with ISO9001

Product Specifications

Attribute	Value
After-Sales Service Provided	Video Technical Support
Machine Color	Customizable
Product Qualification Rate	≥ 98%
Type	Adult Diaper Machine
Fabric	Non Woven
Packaging System	Auto Stacker (Optional)
Efficiency	90%
Machine Size	35m × 6m × 4.5m (reference only)

Product Overview

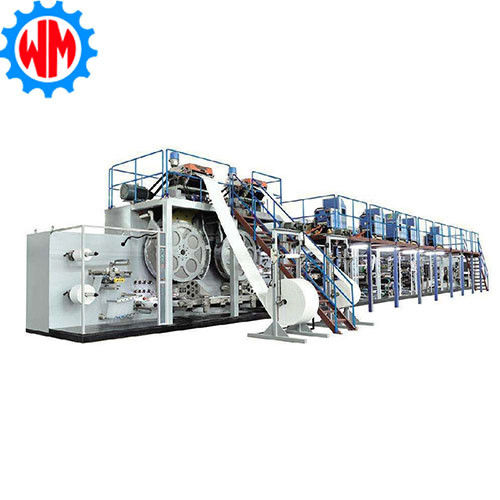

This advanced adult diaper production line includes the main machine, glue applicators, packing system, and accessory equipment such as air compressors, vision detection systems, and metal detection machines. The system can produce 3-5 different diaper sizes based on order requirements and features 100% fully automatic control.

Technical Specifications

Product Sizes: M: 680×450mm, L: 800×650mm, XL: 950×760mm (Customizable)
Product Structure: Multi-layer construction including tissue, cotton core with SAP, non-woven layers, elastic components, and adhesive elements
Control System: PLC control with HMI LED touch screen operation and HDTV monitor
Drive System: Servo drive for easy size changes, imported timing belts and bearings
Tension System: A&B shaft active unwinding by inverter motor for all material layers
Safety Features: Operating side safety devices, emergency stop switches, sound insulation
Power Requirements: 380V, 50Hz three-phase five-wire system
Machine Capacity: 400KW (excluding glue machine and air compressor)
Air Pressure: 0.6-0.8Mpa (customer-provided air compressor required)

Product Images

Durable Construction Features

Stainless Steel + Anti-Corrosion Coating: The machine body uses 304 stainless steel with nano-coating treatment on critical components. Proven to resist rust and jamming for five years in high-humidity environments (80% average annual humidity).

Wide Temperature Range: Electrical control system maintains stable operation from 0 to 45℃ with standard industrial cooling, eliminating need for expensive constant-temperature workshops.
