Quanzhou Womeng Intelligent Equipment Co., Ltd.
jessie@wm-machinery.com
86--18859442931
Product Details
Place of Origin: China
Brand Name: Womeng
Certification: CE,ISO9001
Model Number: WM-A1124
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $600000~$8000000/piece
Packaging Details: Seaworthy Wooden Box
Delivery Time: 120-150days
Payment Terms: T/T, L/C
Supply Ability: 30sets/year
|
After-Sales Service:
|
Engineers Available To Service Machinery Overseas
|
Air:
|
0.6-0.8 M Pa
|
Raw Material:
|
Fluff Pulp, SAP, Non-woven Fabric, PE Film
|
Qualified Rate:
|
≥98%
|
Working Type:
|
Automatic
|
Warranty Time:
|
1year
|
Packaging System:
|
Auto Stacker (Customized Design)
|
Condition:
|
Brand New
|
|
After-Sales Service:
|
Engineers Available To Service Machinery Overseas
|
|
Air:
|
0.6-0.8 M Pa
|
|
Raw Material:
|
Fluff Pulp, SAP, Non-woven Fabric, PE Film
|
|
Qualified Rate:
|
≥98%
|
|
Working Type:
|
Automatic
|
|
Warranty Time:
|
1year
|
|
Packaging System:
|
Auto Stacker (Customized Design)
|
|
Condition:
|
Brand New
|
| Attribute | Value |
|---|---|
| After-Sales Service | Engineers available to service machinery overseas |
| Air | 0.6-0.8 M Pa |
| Raw Material | Fluff Pulp, SAP, Non-woven Fabric, PE Film |
| Qualified Rate | ≥98% |
| Working Type | Automatic |
| Warranty Time | 1 year |
| Packaging System | Auto Stacker (Customized Design) |
| Condition | Brand New |

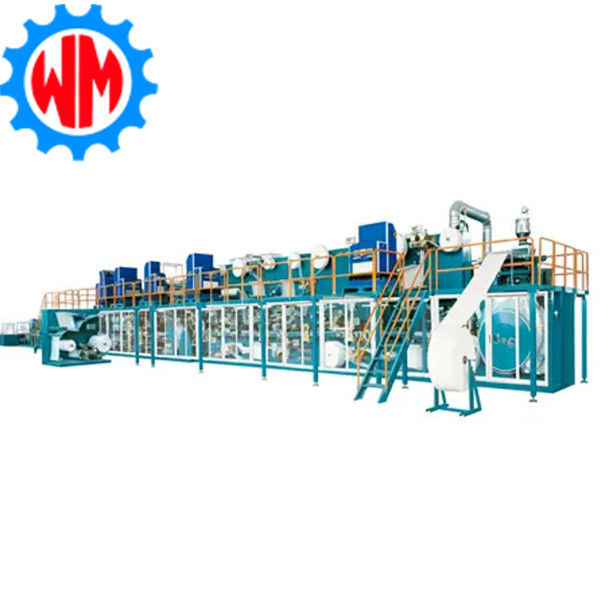

Our full servo high efficiency adult diaper production line features ISO-certified quality and advanced automation technology for superior performance and reliability.
| Product size | 35m*6m*4.5m (Customizable according to customer requirements) |
| Product structure | Upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven, ADL non-woven, leak guard hydrophobic non-woven back sheet, waist band non-woven, color pattern sticker, elastic waist band, discarding sticker |
| Control system | PLC control system, HMI operating on LED touch screen, configured with HDTV monitor |
| Drive system | Servo drive (easy to change size), import timing belts and flat belts, all key parts use import bearings |
| Tension system | Active unwinding by inverter motor for all material components |
| Safety system | Safety devices on operating side, emergency stop switch, sound insulation for high audio fans |
| Packaging system | Customizable palletizer machine (double push double exit) adjustable |
| Power | 380V, 50HZ three phase five wire |
| Machine Capacity | 400KW (Excluding glue machine and air compressor) |
| Bleed pressure | 0.6-0.8Mpa (Air compressor needs to be prepared by customers) |
| Machine weight | 90 Tons approximately |
For any additional inquiries, please contact our team for personalized assistance.
