Product Details
Place of Origin: Quanzhou City,Fujian Province,China
Brand Name: WOMENG
Certification: CE,ISO9001

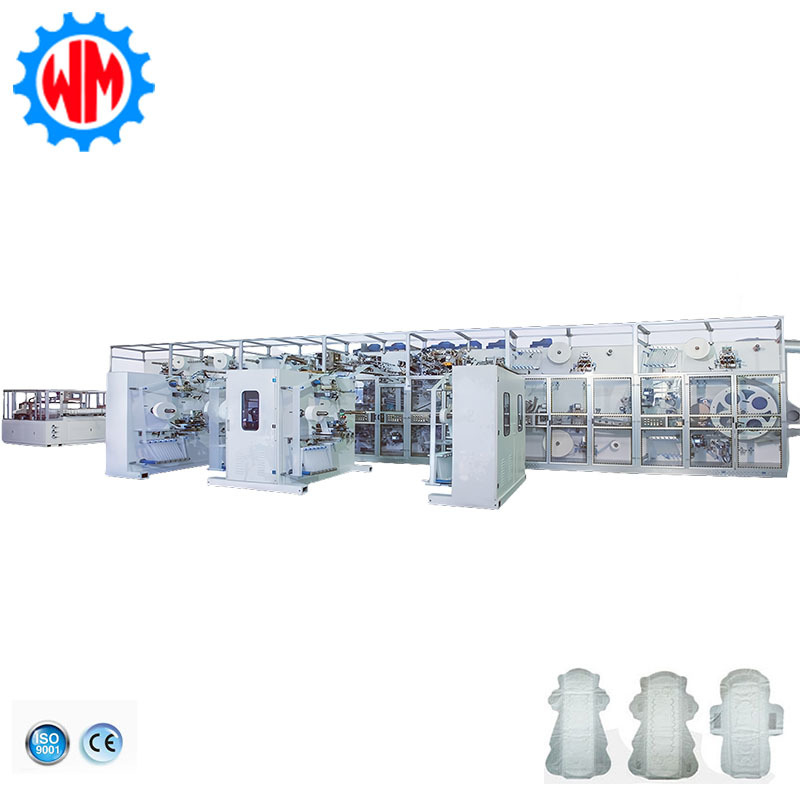

Model Number: WM-ASN12
Payment & Shipping Terms
Minimum Order Quantity: 1piece
Price: $350000~$500000
Packaging Details: Seaworthy Wooden Box
Delivery Time: 60-100 days
Payment Terms: L/C,T/T
Supply Ability: 12sets/year
|
Operator:
|
2-3 Persons
|
Hs Code:
|
84418090
|
After-sale Service:
|
Engineers Service Oversea/Video Technical Support
|
Warranty:
|
12Months
|
Machinery Test Report:
|
Provided
|
Regional Customization:
|
Support
|
|
Operator:
|
2-3 Persons
|
|
Hs Code:
|
84418090
|
|
After-sale Service:
|
Engineers Service Oversea/Video Technical Support
|
|
Warranty:
|
12Months
|
|
Machinery Test Report:
|
Provided
|
|
Regional Customization:
|
Support
|
| Production Speed | 800-1200 pieces per minute |
| Product Size | 240mm,290mm,320mm,420mm(Customized according to customer requirement) |
| Production Yield Rate | ≥98% |
| Weight | About 50 tons |
| Machine Size | 25x4x3m |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Raw Material | Fluff pulp, SAP, non-woven fabric, PE film |
| Control System | PLC control system(Mitsubishi),HMI Operating on the LED touch |
| Drive system | Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings. |
| Power | 240V,50Hz,3 Phase Five Wire |
Technical features:
* Compact design, easy operation & maintenance
* Modular design, for future upgrading
* Low consumption, high efficiency
* Servo or frequency inverter transmission
* Touch screen for man-machine conversation
* Auto record and calculation of process data
* Main raw material auto splicing at zero speed
* Inverter or servo unwinding with tension control
* Web guiding controller
* Sensor quality control systems
* Material broken and lost inspection, auto machine stops and defective products auto rejection
* Easy size changing and manufacture
| Core Structure | Sub-Structure | Main Materials | Key Features |
| Surface Layer | Skin-Friendly Layer | Combed Cotton,Bamboo Fiber | Soft, skin-friendly, breathable |
| Breathable Layer | Microporous Non-Woven Fabric | Moisture-wicking, reduces stuffiness | |
| Distribution Layer | Rapid Penetration Layer | High-Puff Non-Woven Fabric | Fast liquid absorption, no local accumulation |
| Despersion Layer | Patterned Non-Woven Fabric | Even liquid distribution | |
| Absorbent Core | SAP Locking Layer | Super Absorbent Polymer (SAP) | High water absorption, anti-reverse osmosis |
| Support Layer | Fluff Pulp, Hollow Fiber | High water absorption, anti-reverse osmosis | |
| Leak-Proof Bottom | PE Breathable Film | Polyethylene Breathable Film | Waterproof, breathable |
| Anti-Slip Adhesive | Medical-Grade Adhesive | Secure fit, no displacement | |
| Wings | Fixing Wings | Rigid Non-Woven Fabric | Anti-side shift |
| Leak-Proof Edges | Elastic Non-Woven Fabric | Enhanced side leakage protection |
