Quanzhou Womeng Intelligent Equipment Co., Ltd.
jessie@wm-machinery.com
86--18859442931
Product Details
Place of Origin: Quanzhou City ,China
Brand Name: Womeng
Certification: CE,ISO9001，SGS
Model Number: WM-DCK02
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $500000~$8000000/piece
Packaging Details: Seaworthy Wooden Box
Delivery Time: 90-150days
Payment Terms: T/T,L/C
Supply Ability: 10sets/year
|
Region Customization:
|
Support
|
After-Sales Service:
|
Engineers Available To Service Machinery Overseas/Field Installation/Video Technical Support
|
Condition:
|
New
|
Machinery Test Report:
|
Provided
|
Warranty:
|
12 Months
|
Export Port:
|
Xiamen Port
|
|
Region Customization:
|
Support
|
|
After-Sales Service:
|
Engineers Available To Service Machinery Overseas/Field Installation/Video Technical Support
|
|
Condition:
|
New
|
|
Machinery Test Report:
|
Provided
|
|
Warranty:
|
12 Months
|
|
Export Port:
|
Xiamen Port
|
| Condition | New |
| Finished Product Size | S,M,L,XL(According to customers reqirement) |
| Machine Weight | About 90 tons |
| Production Line Size | 35x6x4.5M(For reference only) |
| Production Speed | 200-400Pcs/Min |
| Control System | PLC Control System(Mitsubishi) |
| Production Efficiency | ≥98% |
| Power Supply | 3 Phase, 380V, 50Hz |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Machine Type | Full Servo |
| Finished Product structure | Nonwoven cuffs,Fluff cuff elastics,Nonwoven topsheet,Acquisition layer,Tissue,Fluff+SAP,Phobic Nonwoven,Inner Nonwoven,Elastic waistband,Anatomic elastics,Outer Nonwoven,Disposable tape |
| Packaging System | Customized Design |
| Warranty | 1 year |
The production line includes:
Double pulp crusher system
Double SAP feeding system
Double Drum forming system
Lower tissue paper feeding system
Upper tissue paper feeding system
Core wrapping system
Smooth roller compacting system
Web roller compacting system
ADL feeding & cut system
Core cutting system
Hydrophobic non woven feeding system
Hydrophilic non woven feeding system
Wasit band feeding & cut system
Backsheet feeding system
Frontal tape feeding system
Leg Spandex feeding system
Side tape feeding system
Arc cutting system
Edge scrap collecting system
Vertical folding system
Product compacting system & final cutting
NO.1 rejection output
Bi & Tri folding system
NO.2 rejection output
Out put system
Finished product details

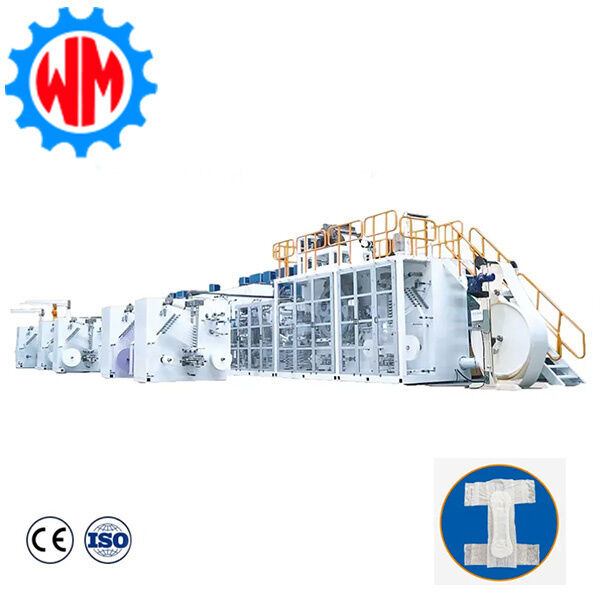

Machine Panoramic Image
Intelligent detection and data-driven management ensure full traceability throughout the production process
• An optional online visual inspection system can be equipped to automatically complete full-item inspections such as size, alignment, stains, and material loss. Defective products can be removed in real time, further reducing the scrap rate.
• Support real-time recording and export of production data (output, loss, speed), adapt to the ISO 9001 quality system, and meet the strict requirements for product traceability in markets such as Europe and America.
• Value to international buyers: The production process is transparent and controllable, facilitating quality control and cost accounting, and easily handling customer factory audits and market supervision.
Customized adaptation and functional expansion to meet local market demands
• According to the preferences of the target market, special processes such as elastic waist circumference, anti-side leakage stand, and 3D core can be customized to adapt to the usage habits of consumers in different regions.
• Support the installation of automatic coding, punching, stacking, bagging and sealing and other supporting equipment to achieve full-process automation of "production - packaging - palletizing".
• Value for international buyers: Localized products can be produced without additional modification, enhancing terminal competitiveness while reducing the cost of secondary equipment procurement.
Orgional Customized for America,Canada,Mexico,Colombia,Brazil,Norway,Britain,Ireland,Belgium,Holand,Monaco,Romania,Bulgaria,Serbia,Albania,Slovenia,Croatia,Malta
